MK-88 DSP数字混响麦克风效果器 Digital Reverb Microphone Effect Processor

本机特点：

采用DSP算法的大规模数字音频芯片，小体积多功能；

麦克风部分：自动防啸叫算法，动态降噪，二种数字混响效果模式，二路动圈麦克风输入，高低音调整；

音乐伴奏部分：支持蓝牙输入，同轴输入，线路输入；

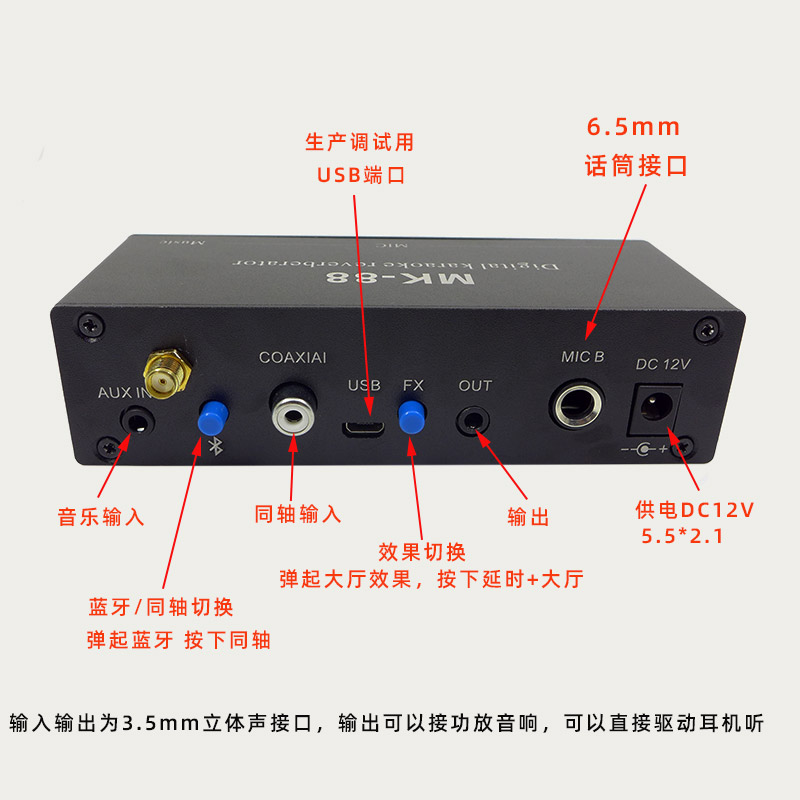

接口及旋钮功能

1、 AUX IN： 为音源输入接口，3.5mm接口，如CD、MP3、手机音乐、电脑音乐、等.........都可以做为音源输入；

2、蓝牙同轴切换，弹起是蓝牙，按下去是同轴，《注：蓝牙名称MK88》；

3、COAXIAI:为同轴输入；

4、USB：为生产调试端口；

5、FX:为效果切换，弹起为大厅效果，按下去是延时加大厅效果；

6、OUT：线路输出，3.5mm接口，接有源音响或者功放的输入端，也可以直接驱动耳机听；

7、MICA,MICB:为两个6.5的话筒接口，两个接口可同时使用，有线无线的话筒均可用；

8、VOL为话筒音量调节，BASS话筒低音，TRABLE话筒高音，EFFECT效果音量，VOL音乐伴奏音量；

9、供电DC12V，接口型号5.5*2.1。

Large-Scale Digital Audio Chip with DSP Algorithm

Compact size and multi-functionality

Microphone Section

Automatic anti-howling algorithm

Dynamic noise reduction

2 digital reverb effect modes

2 channels of dynamic microphone input

Treble and bass adjustment

Music Accompaniment Section

Supports Bluetooth input, coaxial input, and line input

Interface & Knob Functions

AUX IN: Audio source input interface (3.5mm). It can accept audio inputs from devices such as CD players, MP3 players, mobile phones, and computers.

Bluetooth/Coaxial Switch: In the popped-up state, it is in Bluetooth mode; when pressed down, it switches to coaxial mode. Note: Bluetooth name is MK88

COAXIAL: Coaxial input interface (Note: Original "COAXIAI" is a spelling error, correct spelling is "COAXIAL")

USB: Production and debugging port

FX: Effect switch. In the popped-up state, it is "Hall" effect; when pressed down, it is "Delay + Hall" effect.

OUT: Line output interface (3.5mm). It can be connected to the input terminal of active speakers or power amplifiers, and can also directly drive headphones.

MIC A, MIC B: Two 6.5mm microphone interfaces. Both interfaces can be used simultaneously, compatible with both wired and wireless microphones.

Knob Functions:

VOL: Microphone volume adjustment

BASS: Microphone bass adjustment

TREBLE: Microphone treble adjustment (Note: Original "TRABLE" is a spelling error, correct spelling is "TREBLE")

EFFECT: Effect volume adjustment

VOL (Music Accompaniment): Music accompaniment volume adjustment

Power Supply: DC 12V, interface specification: 5.5*2.1 (mm)
