MEQ-3具有高中低音调节的话筒放大器

耳听为王2024-07-09产品说明书227

本机特点:

 本机适用于声卡或者带有话筒接口的功放有源音箱、调音台等音频设备,具有高中低音三段均衡调节,20db增益放大,ALC自动增益电路,低功耗长续航;

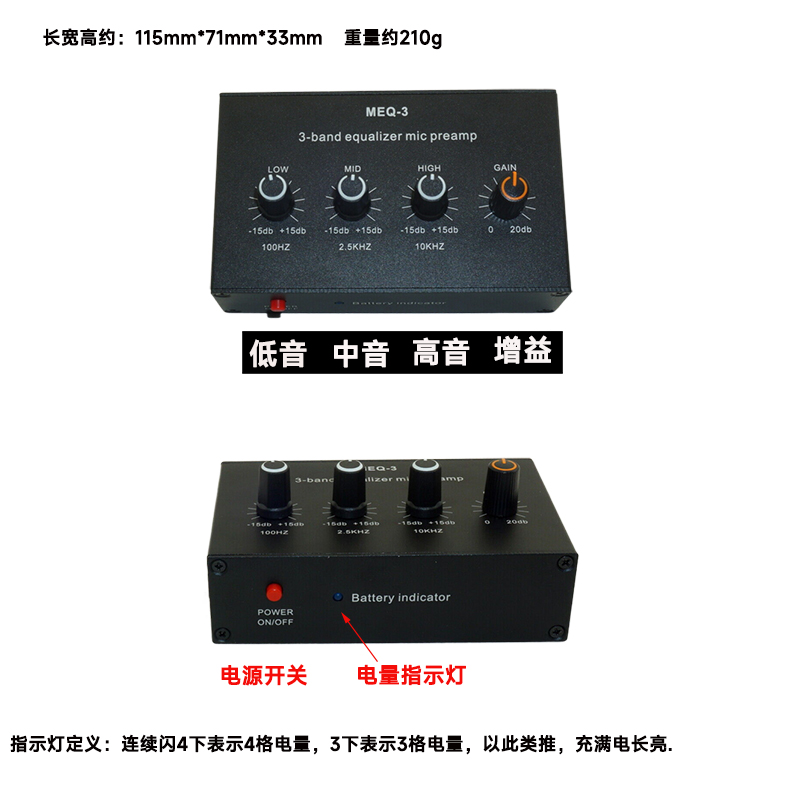

接口及旋钮功能:

MIC IN:话筒输入接口,3.5mm、6.5mm两种接口;

MIC OUT:话筒输出接口,3.5mm、6.5mm两种接口;

POWER:电源开关;

指示灯:电量显示,连续闪4下表示4格电量,3下表示3格电量,以此类推,充满电长亮;

GAIN:增益大小调节,0-20db;

LOW:低音调节,MID中音,HIGH高音,调节范围±15db;

DC5V:充电接口,可使用手机充电头或者其他USB接口进行充电。

Local features:

This device is suitable for audio equipment such as sound cards or amplifiers with microphone interfaces, active speakers, mixing consoles, etc. It has high, medium, and low frequency balanced adjustment, 20db gain amplification, ALC automatic gain circuit, low power consumption, and long battery life;

Interface and knob functions:

MIC IN: microphone input interface, with two types of interfaces: 3.5mm and 6.5mm;

MIC OUT: microphone output interface, with two types of interfaces: 3.5mm and 6.5mm;

POWER: power switch;

Indicator light: Battery level display, flashing continuously 4 times indicates 4 grids of battery level, 3 times indicates 3 grids of battery level, and so on, fully charged and continuously on;

GAIN: Gain size adjustment, 0-20dB;

LOW: Bass adjustment, MID midrange, HIGH treble, adjustment range ± 15db;

DC5V: Charging interface, can be charged using a mobile phone charging head or other USB ports.
