功能：当检测到麦克风说话时压低背景音乐的声音，停止说话时自动恢复到正常状态。
MIC IN麦克风输入接口
6.5mm：适合动圈麦克风，会议鹅颈电容麦克风等；
3.5mm：支持三段式插头，内置偏压适合5V电容麦克风，驻极体麦克风等，由于电容麦克风种类繁多，加上插头的组合有很多种，如果不明白可在线咨询；

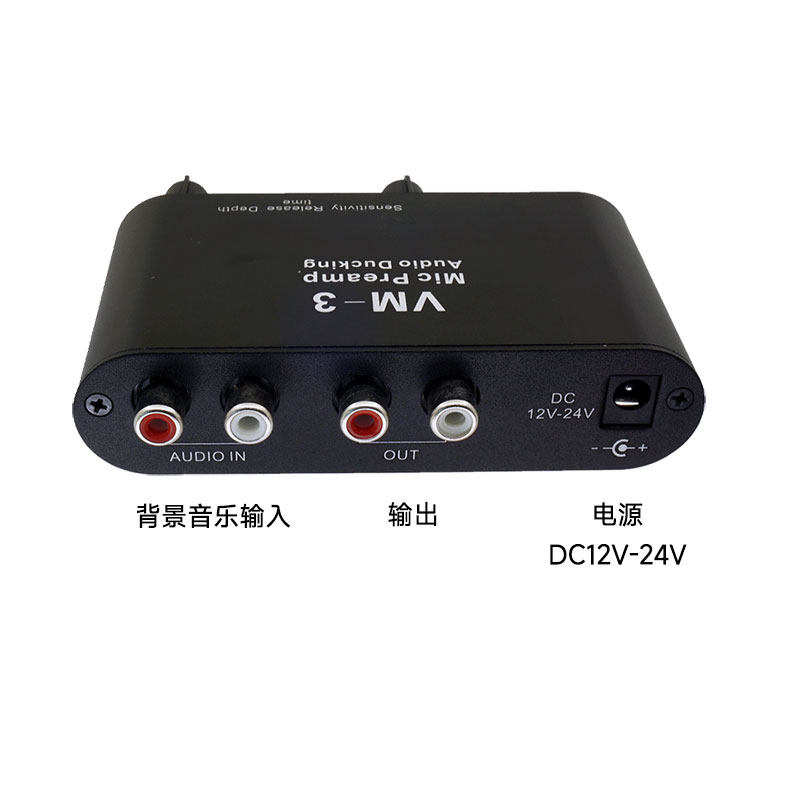

AUDIO IN音频输入：RCA莲花接口
OUT输出：RCA莲花接口
功耗：0.25W
电源：DC12V-24V之间，请使用优质低纹波电源适配器供电。
话筒放大增益：36db
话筒输入阻抗：2KΩ
音频输入增益：0db
音频输入阻抗：：50KΩ
输出阻抗：600Ω

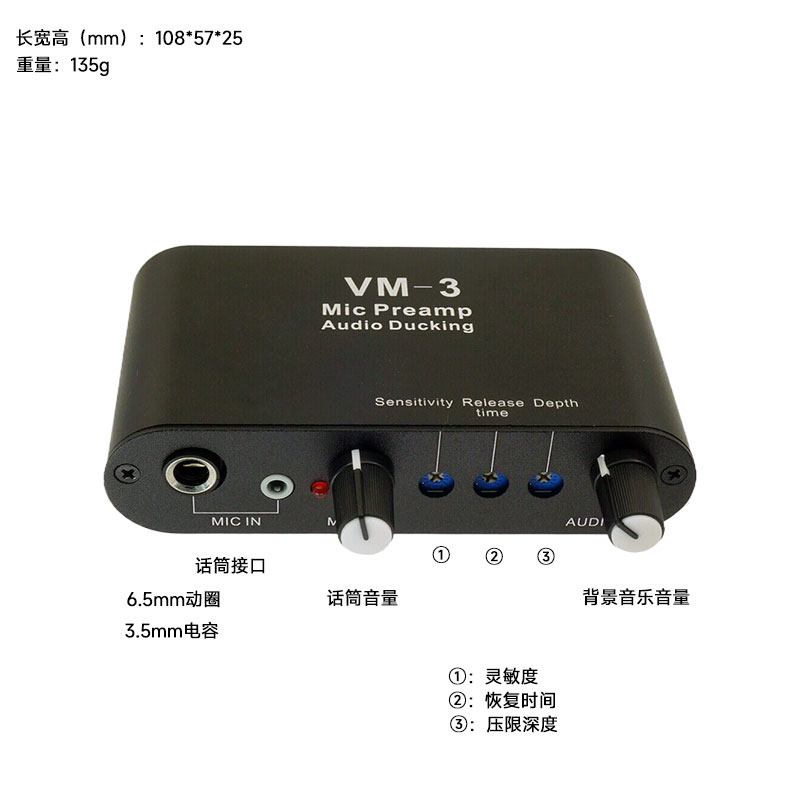

MIC VOL:话筒音量调节；
AUDIO VOL:背景音乐音量调节；
三个可调电阻功能说明：
①：灵敏度，麦克风音量需要多大才可以触发闪避；
②：恢复时间，当麦克风停止说话时，恢复到正常播放背景音乐的的时间；
③：压限深度，当麦克风说话时闪避开始工作，背景音乐的声音大小压低的程度，可以完全静音，也可以适当保留一些。
Function: When the microphone detects speech, it lowers the volume of background music. It automatically returns to normal when the speaking stops.
is often used in commercial paging sound systems, general public address applications, and live events. It can be used for everything from paging, announcements, or messages to automated emergency alerts or anything that needs a priority source to lower the volume level of a secondary audio source, like the background music, to ensure it's audible for your listeners. Once the Priority signal is no longer present, the other audio source(s) can go back to where they were.
Microphone Input Interfaces:
6.35mm: Suitable for dynamic microphones, conference gooseneck condenser microphones, etc.
3.5mm: Supports three-pole plugs, with built-in bias suitable for 5V condenser microphones, electret capsules, etc. Due to the wide variety of condenser microphones and different plug combinations, please be careful to distinguish.
Audio Input: RCA interface
Output: RCA interface
Power Consumption: 0.25W
Power Supply: DC12V-24V; please use a high-quality, low-ripple power adapter for power supply.
Microphone Amplification Gain: 36dB
Microphone Input Impedance: 2KΩ
Audio Input Gain: 0dB
Audio Input Impedance: 50KΩ
Output Impedance: 600Ω
Explanation of the Three Adjustable Resistors' Functions
① Sensitivity: The minimum microphone volume required to trigger the ducking effect.
② Recovery Time: The time it takes for the background music to return to its normal playback volume after the microphone stops receiving input.
③ Depth: The degree to which the background music volume is reduced when the ducking effect activates (i.e., when the microphone is in use). This can range from complete muting of the background music to retaining a moderate level of it.
