MC-401 MAU-401MC-801四路八路电容麦克风扩展器

本机特点：

  可以把一个话筒接口的设备扩展为四个/八个话筒接口，内置偏压可接驻极体话筒咪头或者常见3.5mm接口电容麦克风，每一路音量单独可调，可接音响、电脑、声卡等设备话筒接口。

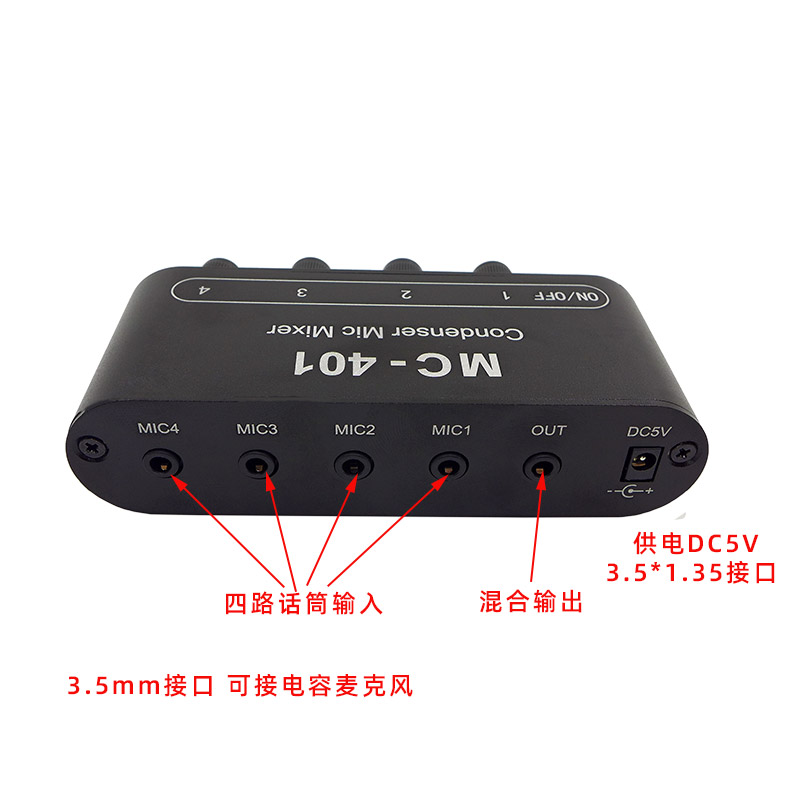

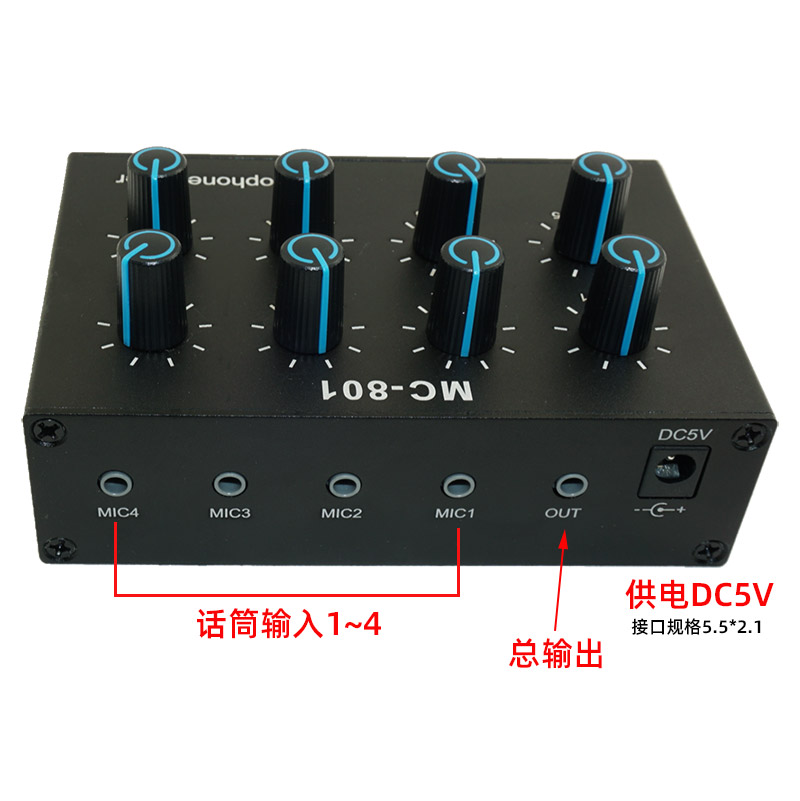

接口及旋钮功能：

MIC：3.5mm话筒接口；

OUT：3.5mm输出接口，接声卡、电脑、声卡等设备话筒接口；

DC5V：MAU-401充电接口：直流5V，可使用手机充电头进行充电；

MC-401,MC-801供电接口，直流5V，可使用手机充电头或者电脑USB口用于供电；

旋钮是每个话筒的音量调整，顺时针加大逆时针减小；

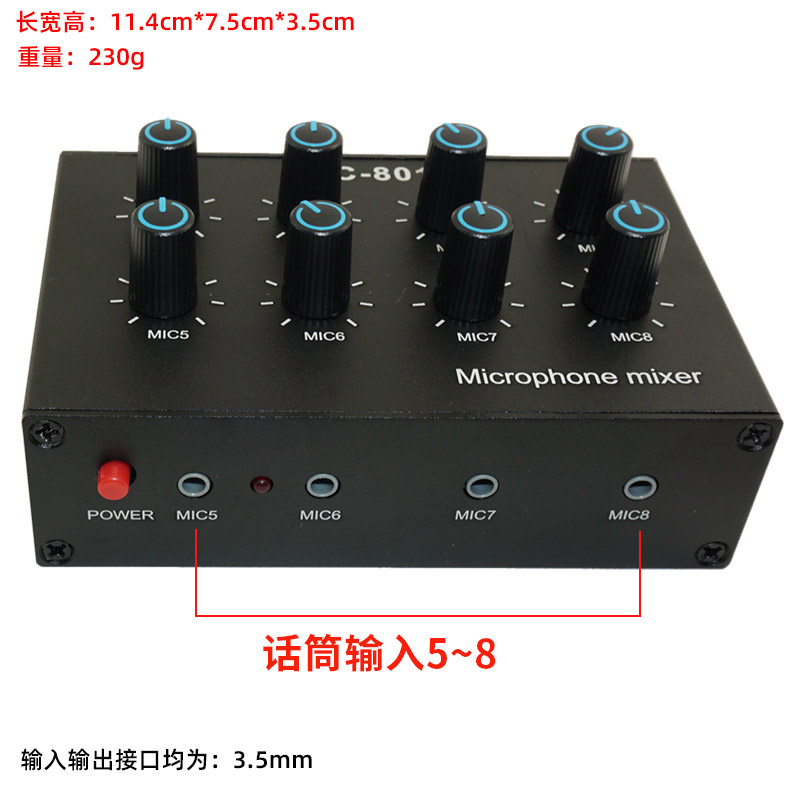

红色开关为电源开关，按下为开弹起为关；

指示灯状态：MAU-401连续闪4下表示四格电量，连续闪3下表示三格电量，以此类推，充满电常亮。

MC-401/MC-801，电源指示灯。

Local features:

A microphone interface device can be expanded to four/eight microphone interfaces, with built-in bias voltage that can be connected to an polarizable microphone head or a common 3.5mm interface condenser microphone. Each channel's volume can be individually adjusted and can be connected to microphone interfaces for audio, computer, sound card, and other devices.

Interface and knob functions:

MIC: 3.5mm microphone interface;

OUT: 3.5mm output interface, connected to microphone interfaces of sound cards, computers, sound cards and other devices;

DC5V: MAU-401 charging interface: DC 5V, can be charged using a mobile phone charging head;

MC-401, MC-801 power supply interface, DC 5V, can be used for power supply with mobile phone charging head or computer USB port;

The knob is the volume adjustment for each microphone, increasing clockwise and decreasing counterclockwise;

The red switch is the power switch, pressed to turn on and popped to turn off;

Indicator light status: MAU-401 flashes continuously for 4 times to indicate a four grid battery level, flashes continuously for 3 times to indicate a three grid battery level, and so on. It stays on when fully charged.

MC-401/MC-801， Power indicator light.
